Bridge too high on Loar LH600 VS?

After reading Jonathan Stout's gear suggestions here:

I decided to go for the Loar LH600 VS with the Dearmond Rhythm King pickup.

The guitar arrived yesterday after a rather nightmarish fashion and the first thing that stood out was how high the bridge was relative to the rest of the guitar's setup.

I've got the action set at about 2.2mm on the bass side and 2.0mm on the treble side, which suits me and I think sounds good.

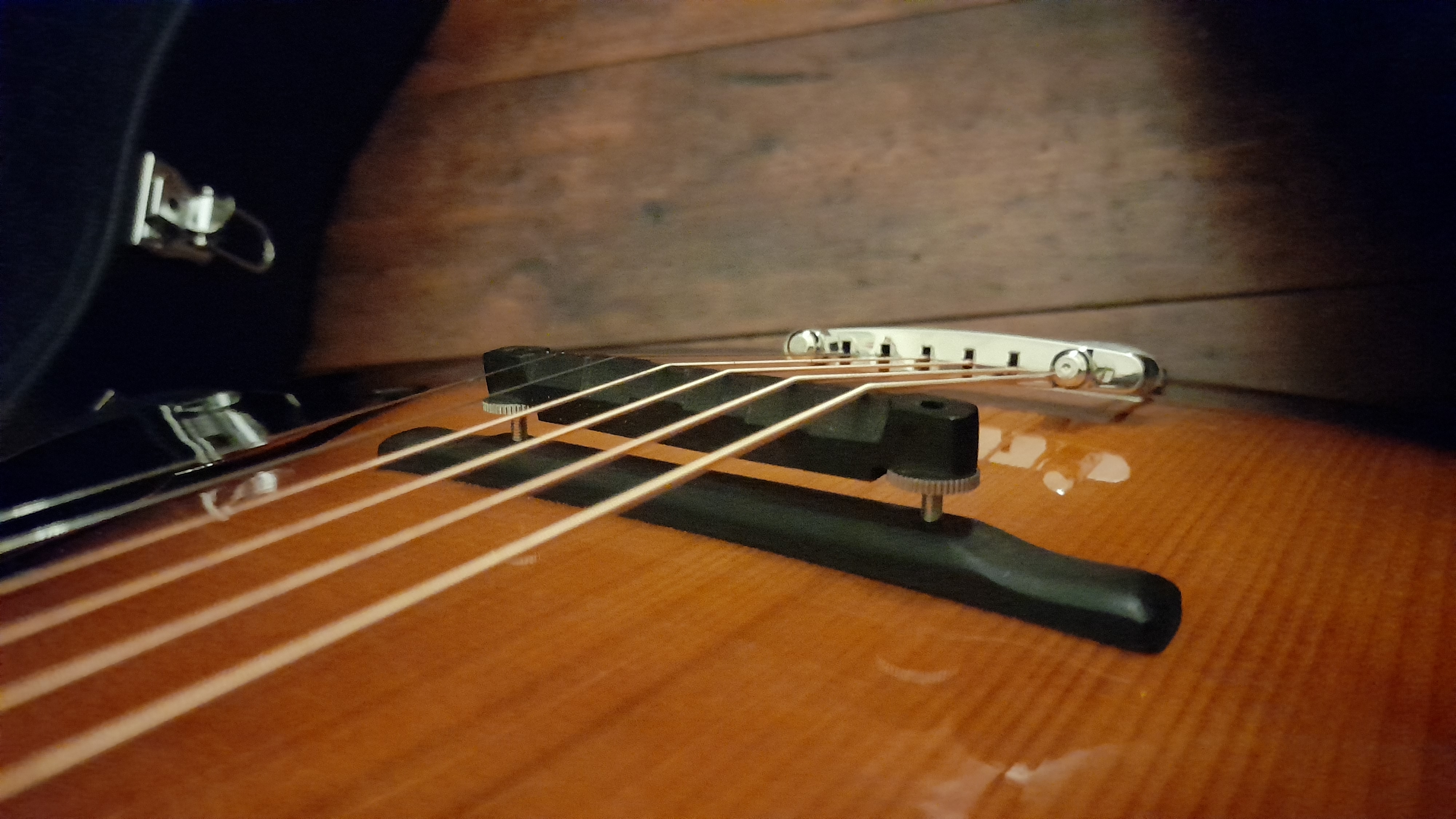

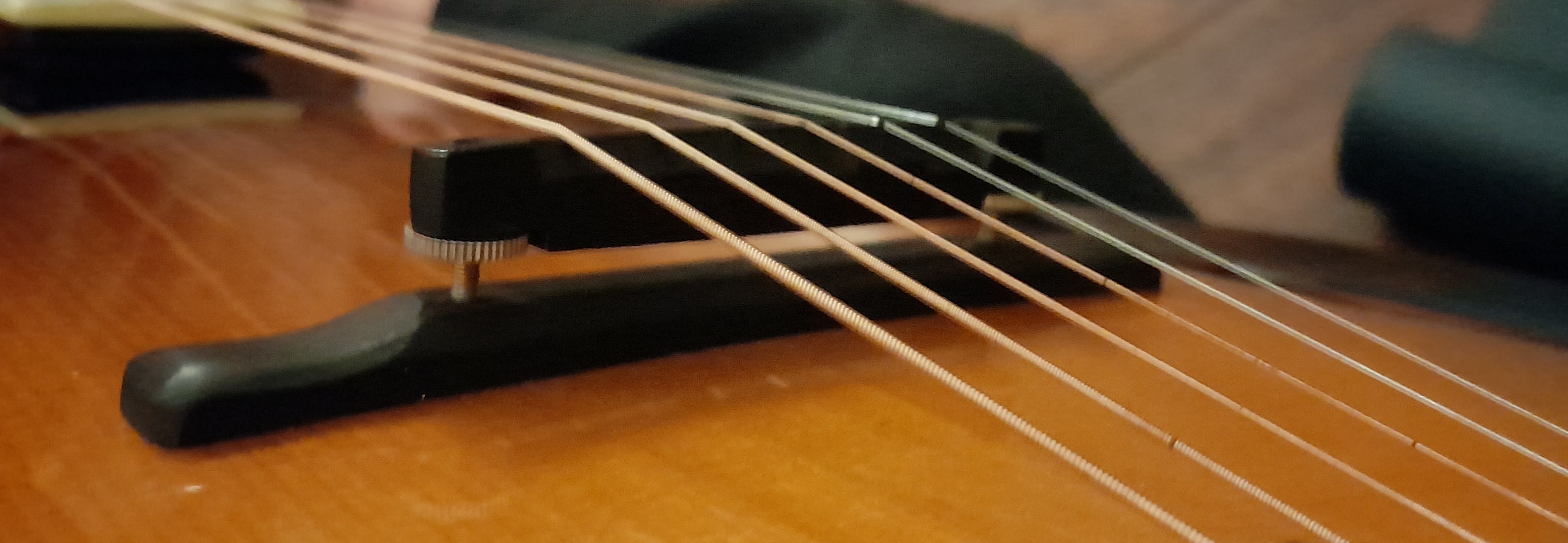

But if you look at the two pics I've attached, the bridge is cranked up so high to allow for this relatively low action that it's slightly tilted forward and is barely still resting on the bridge pins.

Every floating bridge instrument I've ever owned has nothing like that much clearance between the bridge and base.

This just doesn't seem right to me. If anyone else here has gone for the above or a similar rhythm guitar setup with a Loar LH600, what was your guitar like out of the box?


I've contacted Thomann about this, but not surprisingly, I've heard nothing back from them.

Thanks for reading,

Will

Comments

  • Posts: 4,618

    Maybe ask some of the YT reviewers what's their experience. As long as the neck and the rest seem solid, you could replace the bridge.

    Every note wants to go somewhere-Kurt Rosenwinkel
  • JasonSJasonS New
    Posts: 38

    A very slight lean isn't uncommon on archtop bridges, especially when the posts are that exposed. It usually isn't a big deal unless intonation is being compromised. Most people I've talked to about these guitars have said they needed quite a bit of bridge/fret work out of the box to get them into playing shape.

  • krzyskrzys New
    Posts: 126

    Likely needs a neck reset to get the angle right, then the bridge will sit lower.

    Seems in line with what I've read about these guitars. Can be hit or miss unfortunately.

    But if it plays well and sounds good, it might not matter..

  • Posts: 4,618

    Better yet, let it settle in for a few months then have all wood bridge made for the guitar.

    Lango-DjangoGouch
    Every note wants to go somewhere-Kurt Rosenwinkel
  • pdgpdg ✭✭
    Posts: 423

    How's the neck relief? If the neck happens to be too straight, or even back-bowed, then a slight loosening of the truss rod would improve the neck relief and also raise the action slightly, allowing you to lower the bridge height.

  • WillHWillH New
    Posts: 11

    Thanks to everyone for your comments and advice.

    The neck relief could be better and I think a new bridge would be a good idea. I had a new bridge made for my GJ guitar and it made an enormous difference.

    As is, the Loar plays well. The intonation is good for the 3 and 4-note big band swing chords I play and it speaks well, too.

    I'm going to take it round to a luthier I know on Tuesday for his advice and enquire about a new bridge and adding a pick guard / scratch plate. Once that's done, hopefully he can fit the pickup as well.

    Thanks again and I hope you all have a good weekend,

    Will

    billyshakesBuco
  • WillHWillH New
    Posts: 11

    Hey, folks.

    I just wanted to provide an update on this.

    My luthier says he reckons the wrong bridge was put on the instrument at the factory, but he can easily put things right.

    And it won't cost a fortune.

    I contacted Thomann, gave them the same update, and their response was basically, "Send it back and if we determine that you didn't cause the defect, we'll give you a partial refund".

    No thanks.

    On a different note: Does anyone here have any idea how the DeArmond Rhythm King pickup should be wired so that you can have a volume knob on the pickguard and a jack plug as well for plugging it into an amp?

    I've got the DeArmond pickup, but it doesn't look like there is enough wire coming out of it to accommodate both.

    Thanks in advance for your comments and help.

    Buco
  • Posts: 4,618

    Here's a basic diagram for how to wire a volume control

    You have a short pigtail coming from the pickup which just needs to make it to the volume knob. From it you'd wire to the jack.

    For this kind of pickup I'd probably go with passive volume control box.

    billyshakes
    Every note wants to go somewhere-Kurt Rosenwinkel
  • WillHWillH New
    Posts: 11

    Thanks, Buco.

    I very much appreciate your help.

    I'll pass that on and hopefully be squared away soon.

    Have a good weekend,

    Will
