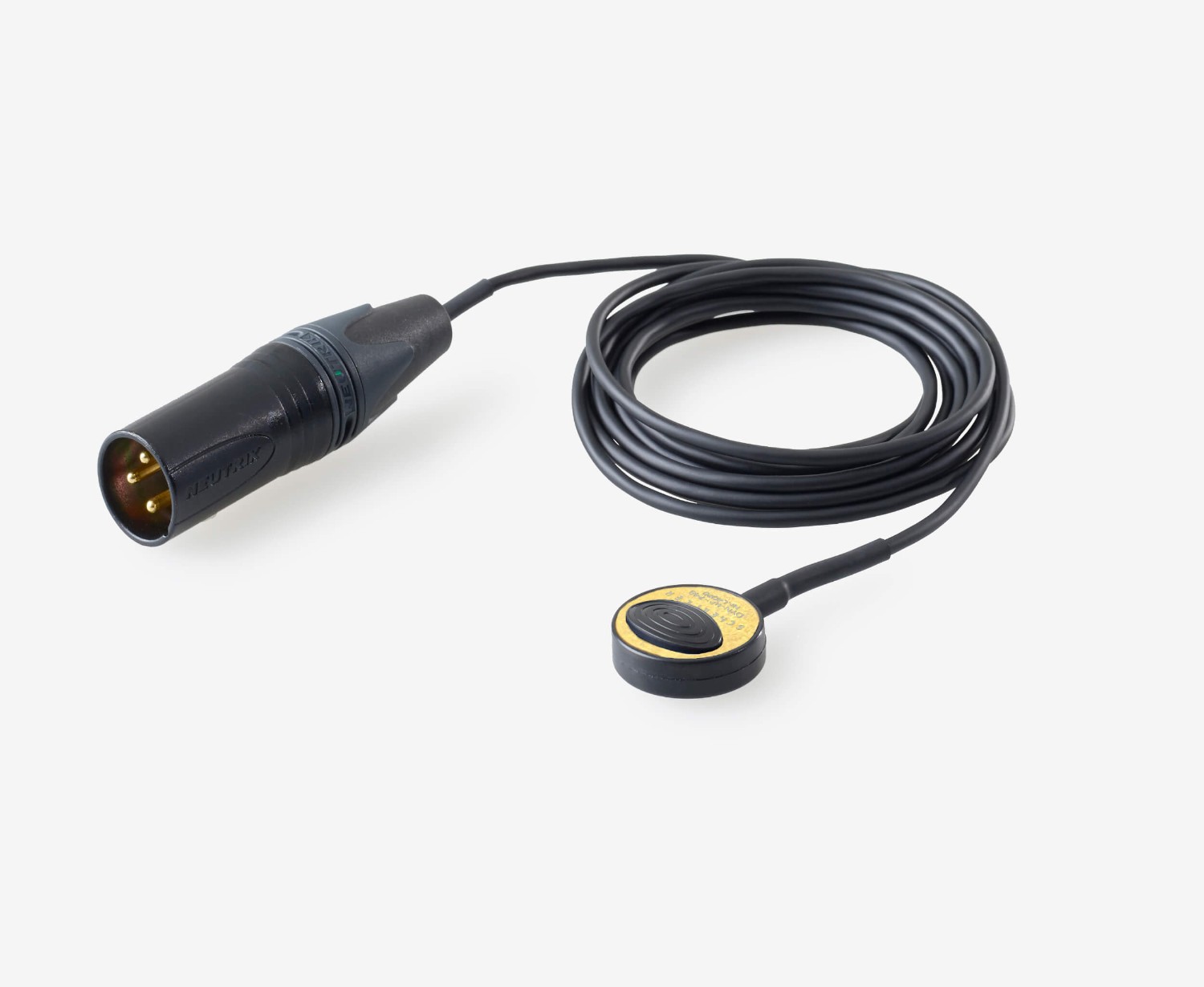

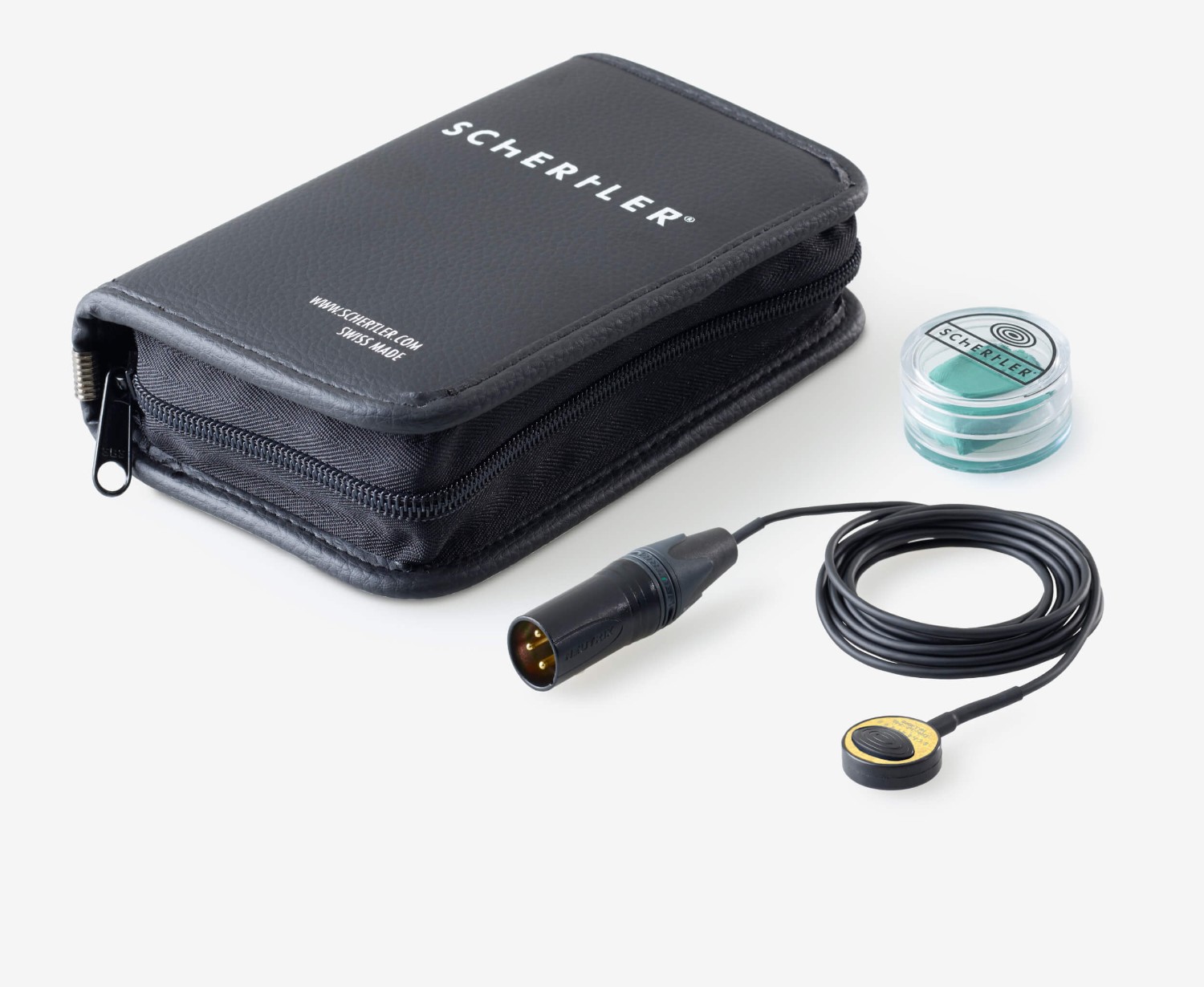

The Schertler DYN HP P48 is an electrodynamic, active, fully balanced contact microphone for Hand Pan and similar instruments. This set include a padded case and special adhesive mastic.
The DYN HP 48 contact microphone for Hand Pans is meticulously designed for professional applications, delivering exeptional sound quality, whether in live performance, amplified, or studio environments. The design stems from a collaboration with the band Hang Massive. With its rugged construction and active filter specially modified to enhance the characteristics of the instrument, this high-end transducer reproduces the natural sound of the instrumnet to perfection.
The DYN HP 48 can be quickly transferred between instruments during peformances or recording sessions. Once in place, its lightweight design makes it unobtrusive for the musician.
A balanced XLR connector enables direct connection to a microhone input on a mixing console, or a full range amplification system (NOTE: these contact microphones require 22-48V phantom power, with the exception of the passive DYN UNI). The torsion-resistant, Kevlar-reinforced cable is designed to withstand the rigors of daily use while delivering best possible performance results.
Schertler DYN P48 series microphones all feature built-in Class-A preamps and advanced filtering technology that enables each microphone to capture the best tonal qualities of the intended instrument.
Transducer type Electrodynamic moving coil active contact microphone
Mechanical decoupling Butterworth 2nd order, Q=6
Frequency Response 20 kHz to 16 kHz
Sensitivity (on instrument) ca. -30 dB
Dynamic range 139 dB
Output impedance 280
Oerating voltage 22-48 VDC
Built-in Preamp Yes all Class-A
External Preamp No
Contacts All gold plated 0.5 mm
For fixed installations No
Removable Yes
Connection XLR balanced
Cable length 4m
Note: Output frequency response is filtered electronically to better match the specific application
