DPA d:vote 4099-G CORE (Guitar Mic w/Clip)

DPA d:vote 4099-G CORE (Guitar Mic w/Clip)

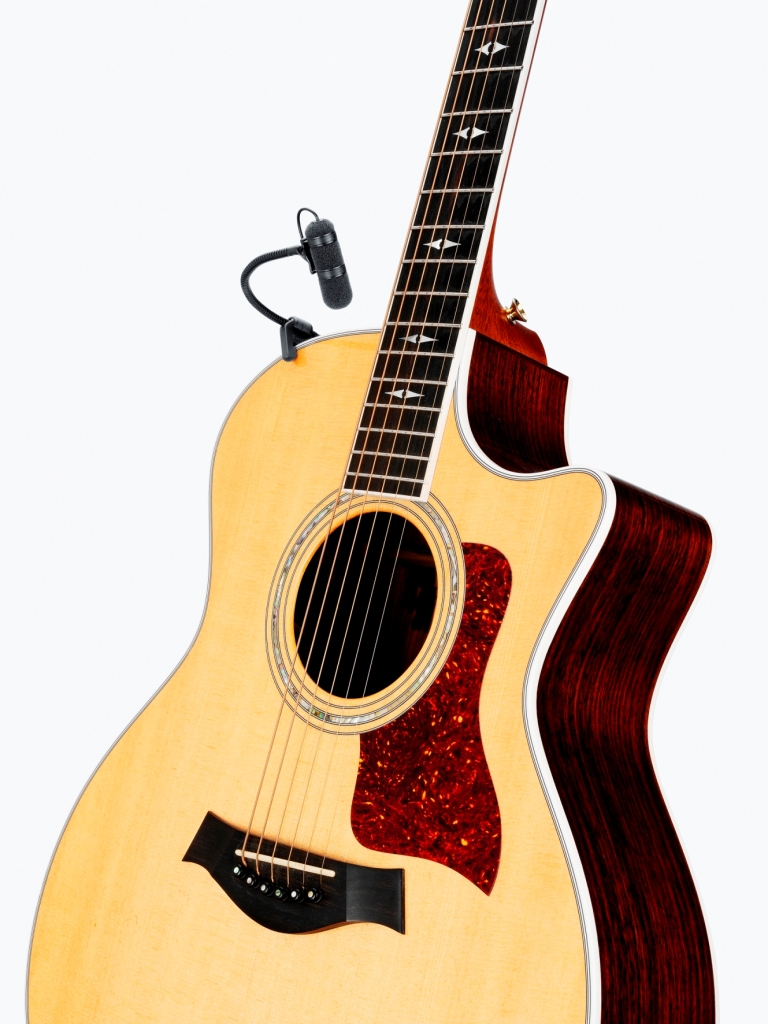

The DPA 4099 Instrument Mounted Microphone is a miniature supercardioid, mic that is optimized to easily mount and capture the Guitar in live sound reinforcement applications such as performances, rehearsals, etc.

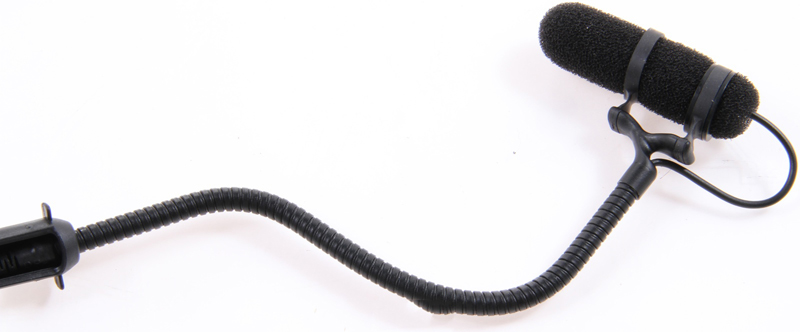

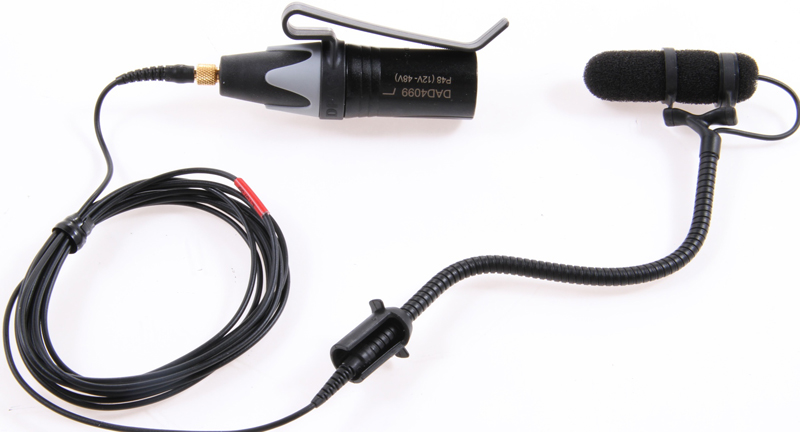

This particular version of the 4099 is optimized for capturing Guitars and Guitar related instruments such as the Dobro, Banjo, etc. The included mounting system is meticulously designed for the guitar family, in order to ensure the best possible fit and audio reinforcement when performing live. The included shockmount, gooseneck and clip minimize vibration noise without marring or scratching the instrument itself.

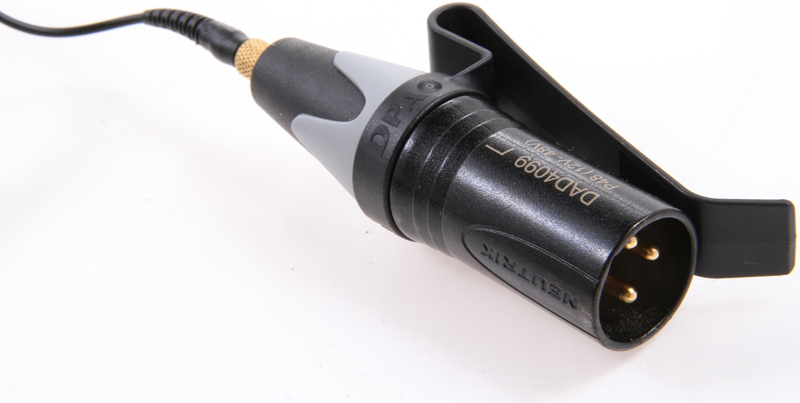

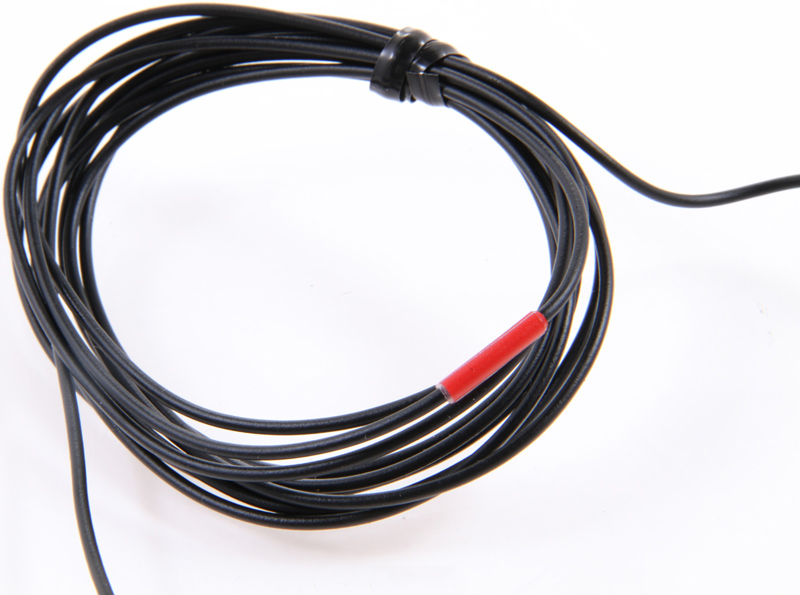

The microphone features DPA's patented Microdot connection and the included DAD6001-BC Belt-Clip Power Supply accepts 48V phantom power from mixers, amplifiers and other sources. A 6' MicroDot to standard XLR cable is included.


Optimized for mounting and capturing the Guitar

Delivered with belt-clip power supply

Flexible mounting system won't scratch instrument surfaces

Excellent audio reproduction for live sound reinforcement

Supercardioid polar pattern is most effective in minimizing noise and off-axis audio


Transducer Pre-Polarized Condenser
Polar Pattern Supercardioid
Frequency Response 80Hz - 15kHz with 2dB Soft Boost at 10 - 12kHz
First-order low-cut filter at 80Hz with DAD4099
Dynamic Range (Typical) Not Specified By Manufacturer
Signal-to-Noise Ratio Typ. 23dB(A)
Maximum Input Sound Level 142dB
Power Requirements For wireless systems: Min. 5V - max. 50V Through DPA Adapter
With DAD4099 or DAD6001-BC 48V phantom power +/-4V
Output Impedance From MicroDot: 30-40 Ohm,
from DAD4099 or DAD6001-BC: 50 Ohm
Output Connectors MicroDot
MicroDot to XLR cable supplied
Pad No
Low Frequency Roll-Off No
Dimensions Mic Length - 1.8" (45mm)
Cable Length - 6' (1.8m)
Weight 1.16 oz (33g)
