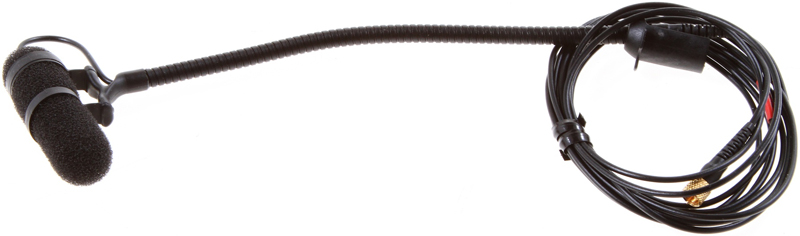

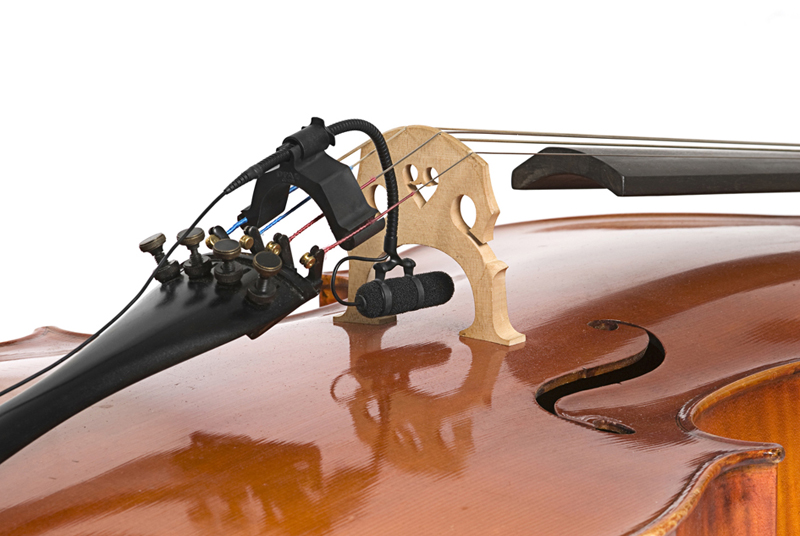

The DPA 4099C Instrument Mounted Microphone is a miniature supercardioid, mic that is optimized to easily mount and capture cello in live sound reinforcement applications such as performances, rehearsals, etc.

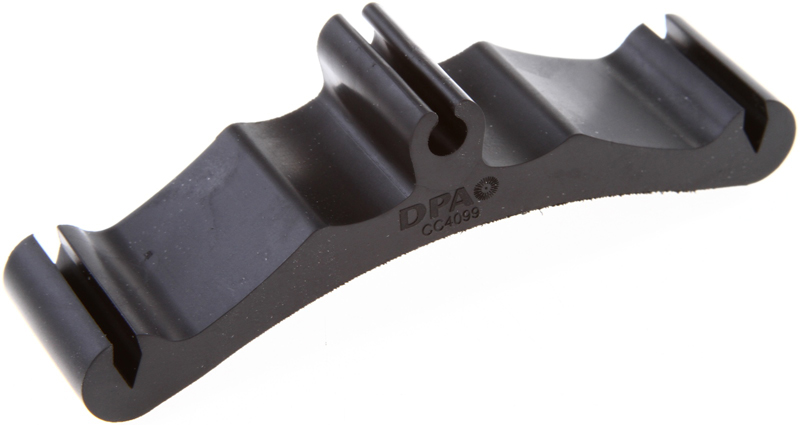

The included mounting system is meticulously designed for mounting the cello, in order to ensure the best possible fit and audio reinforcement when performing live. The included shockmount, gooseneck and clip minimize vibration noise without marring or scratching the instrument itself.

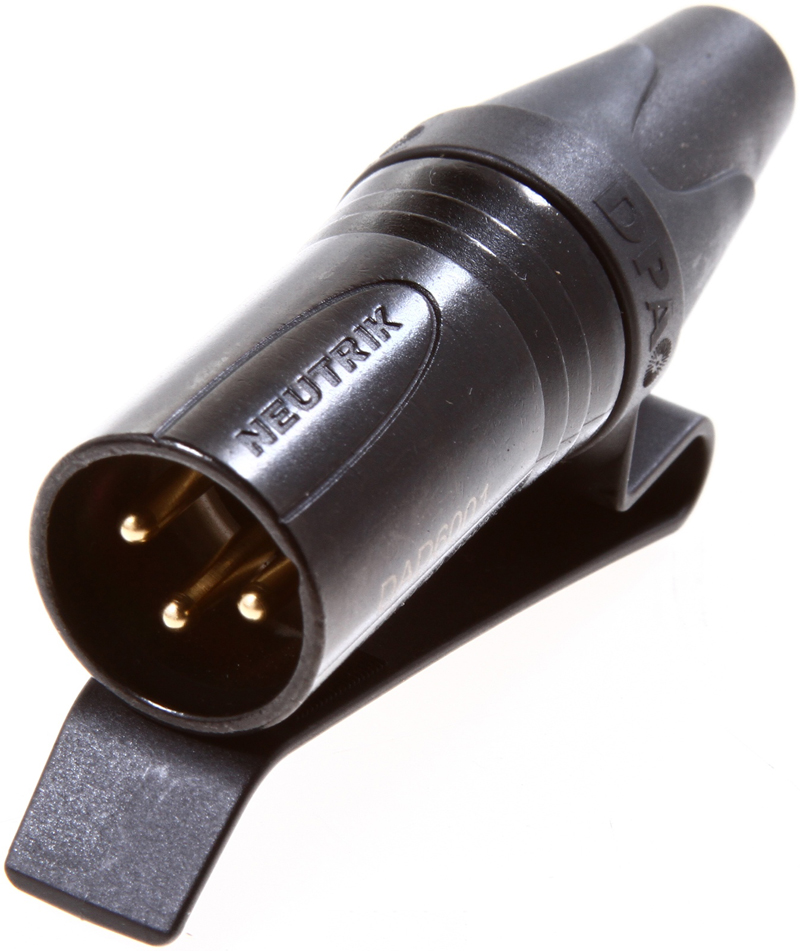

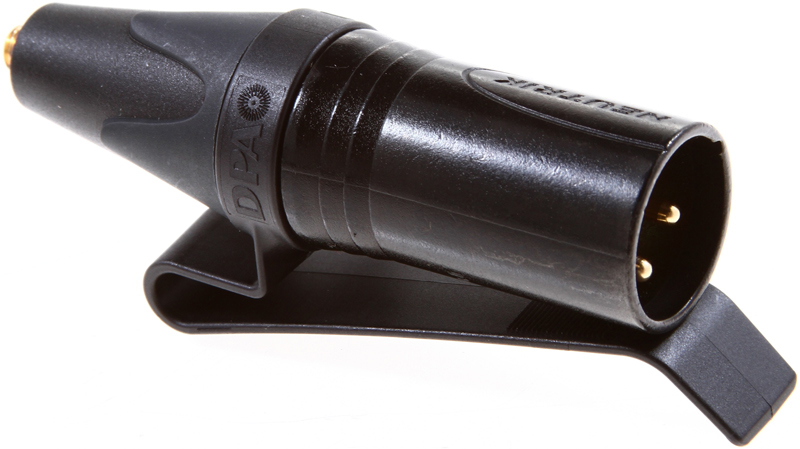

The microphone features DPA's patented Microdot connection and the included DAD4099 Standard Power Supply accepts 48V phantom power from mixers, amplifiers and other sources. A 6' MicroDot to standard XLR cable is included.
Optimized for mounting and capturing cello
Delivered with standard power supply
Flexible mounting system won't scratch instrument surfaces
Natural sound - easy to blend with pick-up
Supercardioid polar pattern is most effective in minimizing noise and off-axis audio
Transducer Pre-Polarized Condenser
Polar Pattern Supercardioid
Frequency Response 80Hz - 15kHz with 2dB Soft Boost at 10 - 12kHz
First-order low-cut filter at 80Hz with DAD4099
Dynamic Range (Typical) Not Specified By Manufacturer
Signal-to-Noise Ratio 71dB
Maximum Input Sound Level 142dB
Power Requirements For wireless systems: Min. 5V - max. 50V Through DPA Adapter

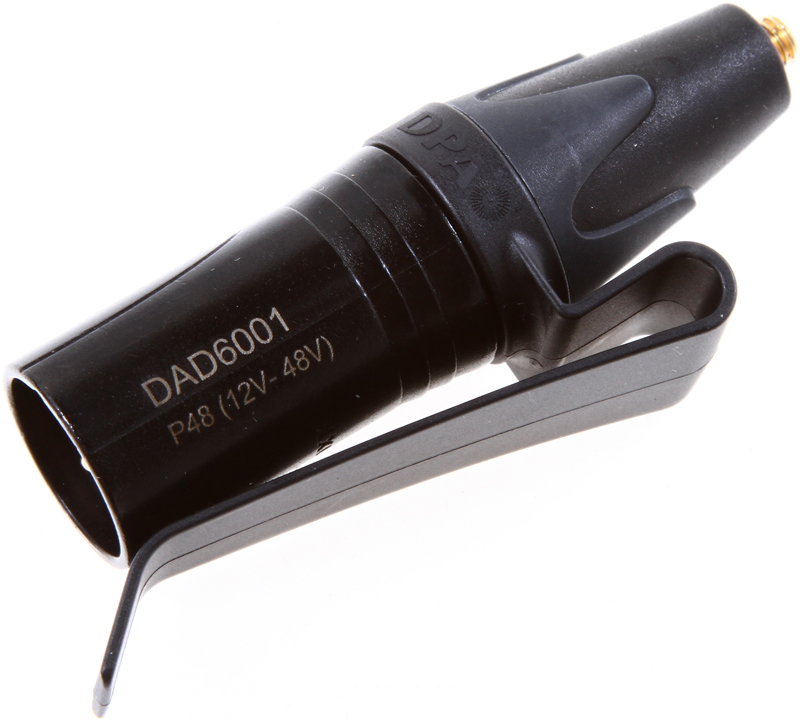

With DAD4099 or DAD6001-BC 48V phantom power +/-4V
Output Impedance From MicroDot: 30 - 40 ohm, from DAD6001-BC: 100 ohm
Output Connectors MicroDot

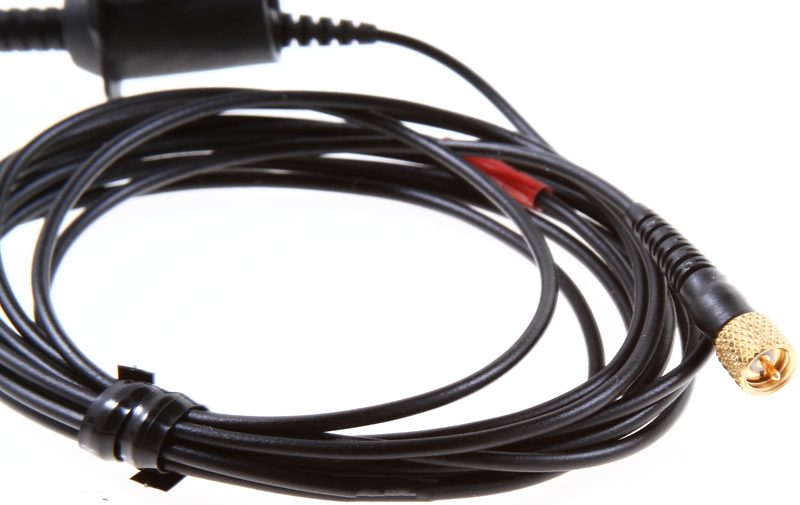

MicroDot to XLR cable supplied
Low Frequency Roll-Off No
Dimensions Mic Length - 1.8" (45mm)
Cable Length - 6' (1.8m)
Weight 1.16 oz (33g)
