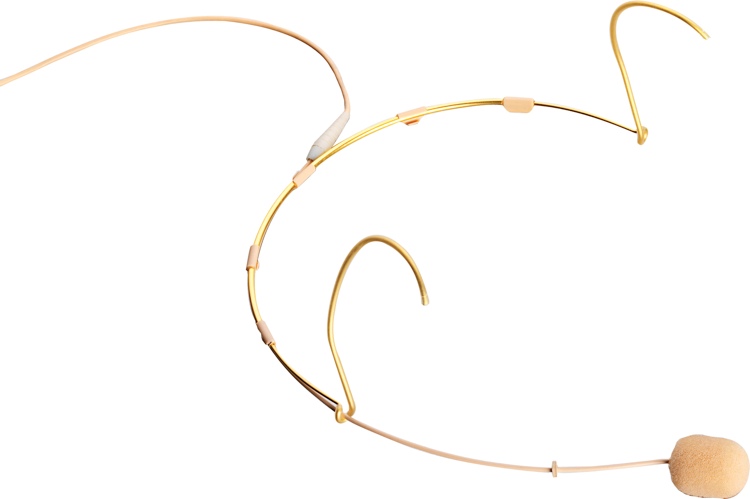

The DPA 4088 is a miniature cardioid headband microphone designed for low profile use on stage, in broadcast studios, video shoots, etc. The sleek, low profile frame features a cardioid, pre-polarized condenser element that delivers a wide frequency response and transparent, accurate audio reproduction that's suitable for the most demanding applications.
The cardioid polar pattern minimizes noise and audio at the off-axis sections of the capsule. The result minimizes feedback and residual noise caused by ambiance and adjacent signal sources. The wide frequency response results in detailed audio reproduction and high SPL handling minimizes distortion and signal peaks. The sleek, adjustable headband provides a comfortable inconspicuous fit and the attached cable measures 5.9' (1.8 m) with a MicroDot terminated connection.
Transducer Pre-polarised Condenser
Polar Pattern Cardioid
Frequency Response 20Hz to 20KHz (+/- between 500Hz and 20KHz; 4-6 soft boost @ 15KHz)
Dynamic Range (Typical) not specified by manufacturer
Signal-to-Noise Ratio Equivalent noise level A-weighted:
Typ. 26dB (A) re 20 mPa
Maximum Input Sound Level 144dB SPL before clipping
Power Requirements Min 5V - max. 50V through the adapter system from DPA Microphones
Output Impedance not specified by manufacturer
Output Connectors 5.9' (1.8 m cable) cable and MicroDot terminated connector
Low Frequency Roll-Off No
Dimensions 0.25" (5.5mm) (Capsule Diameter)
Weight 0.49 oz (14g) incl. cable and MicroDot connector
