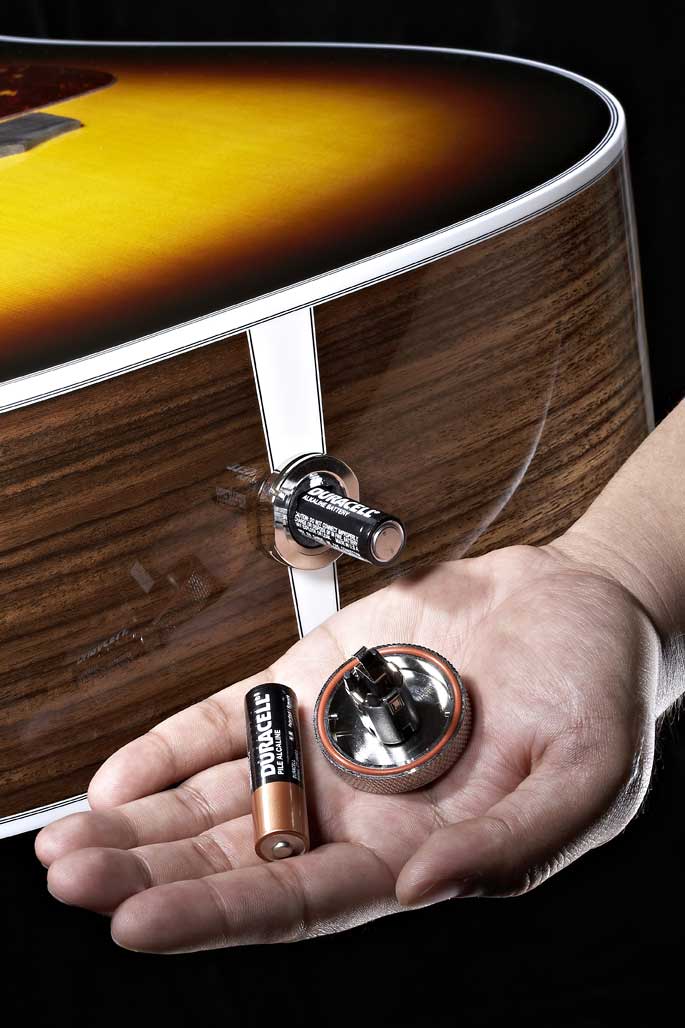

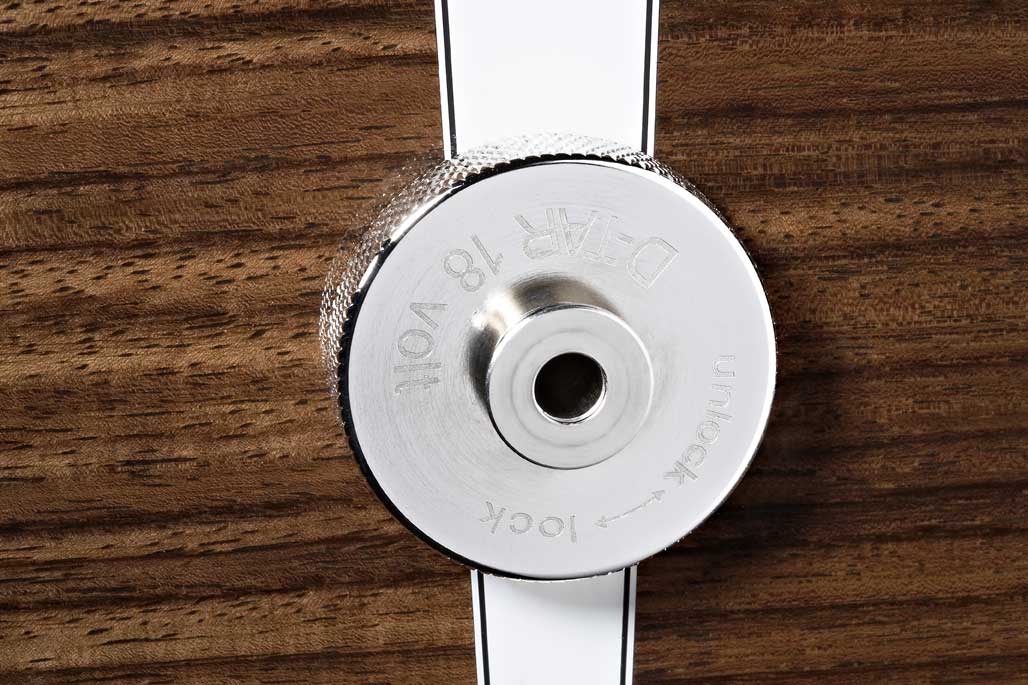

The D-TAR Load 'N Lock system works in conjunction with the D-Tar Wave-Length Under-Saddle acoustic guitar pickup system. Load 'N Lock makes changing your AA batteries easy to do. Simply unscrew the endpin collar, remove the old batteries, and pop in tnew ones. A quarter turn of the collar is all you need to lock them in place.

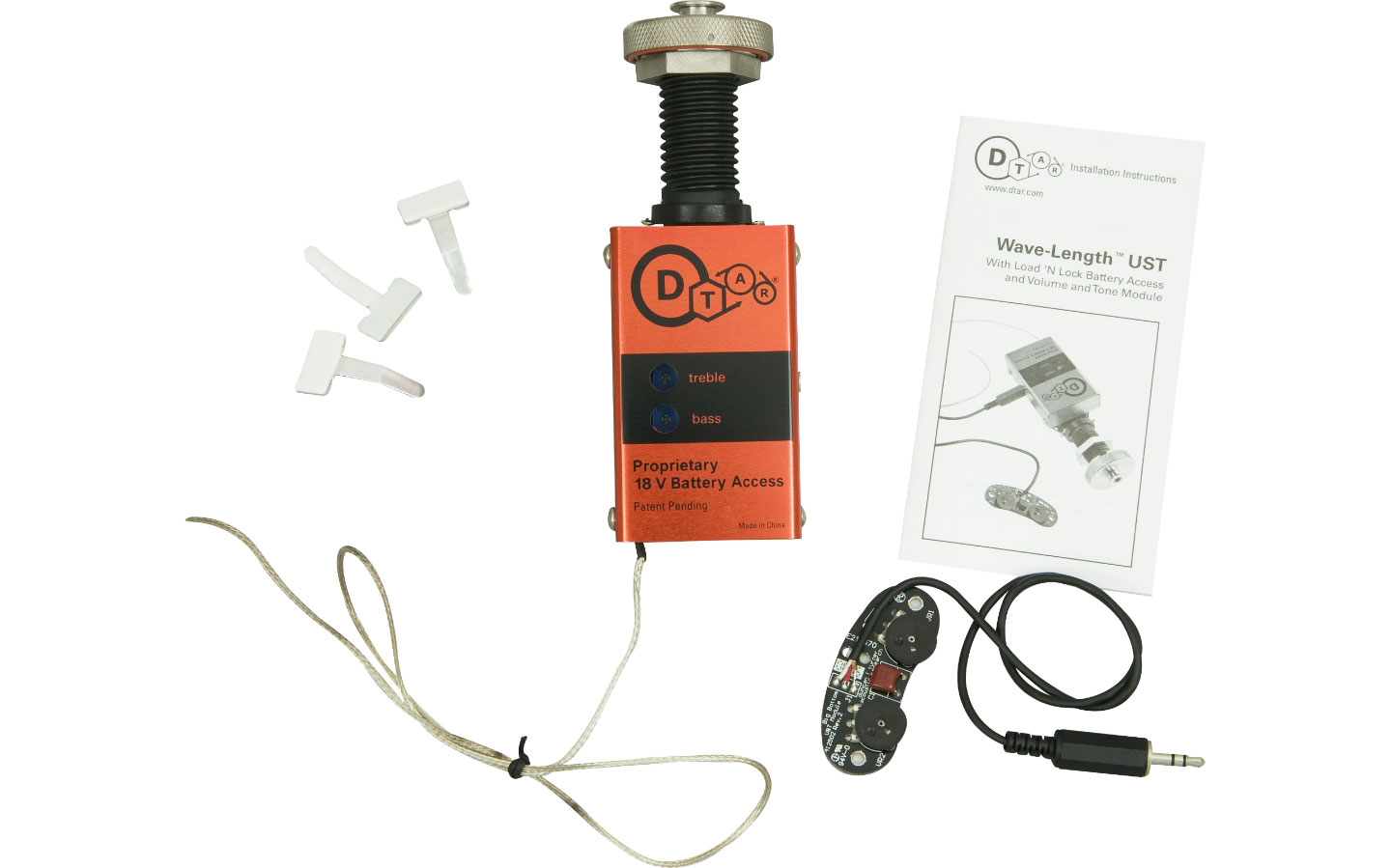

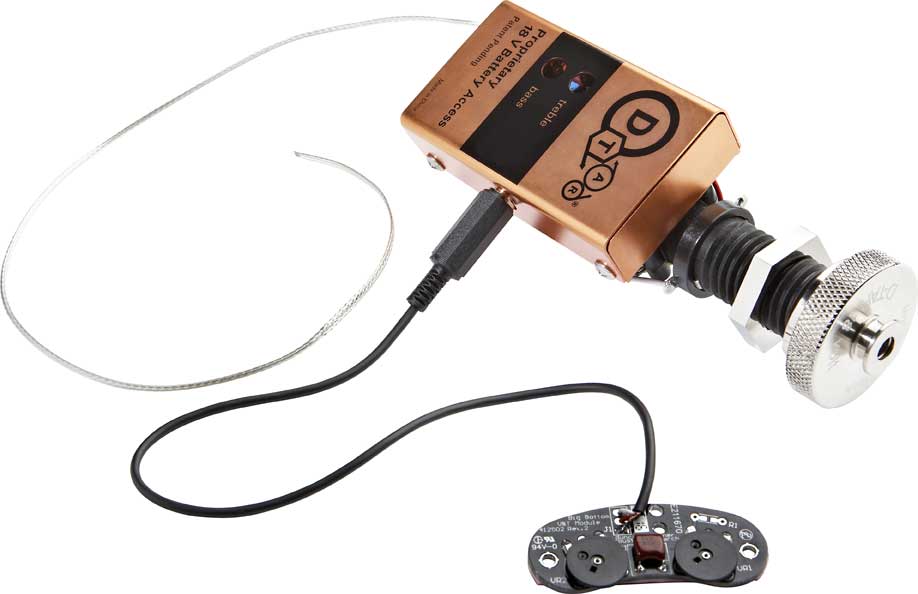

The D-TAR Wave-Length acoustic pickup system combines a thin, piezo transducer with an 18V, low-noise preamp. Eighteen volts translates to twice the headroom and dynamic range of a typical 9V system, so you can strum extra hard without experiencing the dreaded piezo "quack."
To get its 18V, the Wave-Length requires only 2 standard AA batteries. The secret is a proprietary voltage power booster. In addition, the Wave-Length's pre-amp has 2 adjustable trim potsó1 low-frequency shelving and 1 high-frequency shelving. The result is transparent amplification of the natural timbre of your acoustic guitar with minimal coloration.

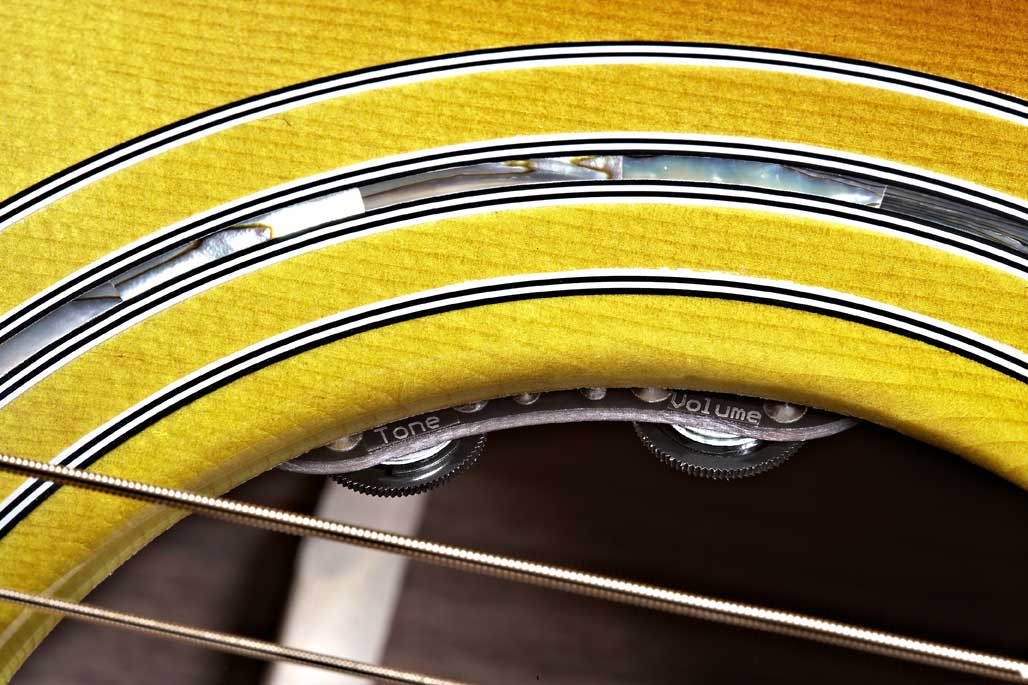

The Wave-Length volume and tone module's controls are located in your acoustic guitar's soundhole for easy access. With all the controls at your fingertips, and the Wave-Length preamp itself residing at the guitar's endpin, there's no loss of tone or dampening of vibrations due to batteries and electronics attached to a side-mounted pre-amp assembly.
D-TAR - Duncan/Turner Acoustic Research
Seymour Duncan and Rick Turner are two legends who spent years working with musicians, perfecting their tone. Seymour founded his self-named company in 1978 which has become well-known for its wide variety of guitar and bass pickups used by just about every name player from Billie Joe Armstrong to Angus Young. Rick co-founded Alembic, was president of Gibson Labs West Coast R&D Division, co-founded Highlander Musical Audio making piezo acoustic guitar pickups for Lindsay Buckingham, Ry Cooder, David Lindley, and Andy Summers, and runs his own Renaissance Guitars. Now Seymour and Rick are working together to create innovative products for acoustic musicians. Their D-TAR motto: "With respect to acoustic tone."
18-volt low-noise preamp
Volume and tone module
Unitary full length pickup accommodates virtually all 6-string spacings
Thin cable design is easy to install in guitars with either 1/8" or 3/32" saddles, often with no modification to the saddle slot.
High Headroom allows for twice the dynamic range of a 9-volt system.
Uses two AA batteries
Dual Source Capability allows the user to combine the wave-length with a magnetic pickup or soundboard transducer for greater complexity of signal
Adjustable bass and treble trim controls
